Elliptical Hip Rafter Calculations For X Axis Plotting
based on Joe Bartok's formulas for plotting points on the ellipse
y = ( Semi-Minor Axis ÷ Semi-Major Axis) × sqrt(Semi-Major Axis² – x²)
x = (Semi-Major Axis ÷ Semi-Minor Axis) × sqrt(Semi-Minor Axis² – y²)
Curved Hip Rafters and Flared Eaves that are common on Witched Gambrel houses, Dutch Colonial, Flemish Colonial and French Huguenot Colonial houses. Also, on Mansard roofs from France that had a eave kick out.
"coyautage" in French or flying gutter by the Flemish.

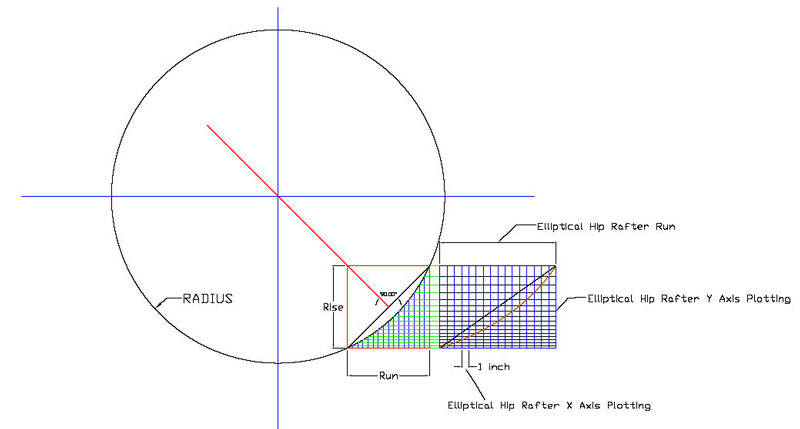

Elliptical Hip Rafter Plotting
