Circular Tower Structural Ring Rafter Calculator v1.0
circular Tower Structural Ring Rafter Calculator
 Raidus   Feet    Inches

    Structural Ring Radius
    Structural Ring Material Width
    circular Hip Width
    circular Plate Width
    Fascia Width
    Plywood Sheathing Cut-off Waste
    Common Rafter Overhang
    Rafter O.C. Spacing At Plate Line
 P   Common Rafter Pitch

show results in feet & inches


results are show below in the IFrame window

All online tools use javascript to calculate the dimensions. Use at your own risk. If the answers look wrong then verify the answers with a calculator.

This circular tower rafter script - calculator will return the circular rafter geometry angles and trigonometry rafter measurements for circular tower roof framing with a structural ring support.

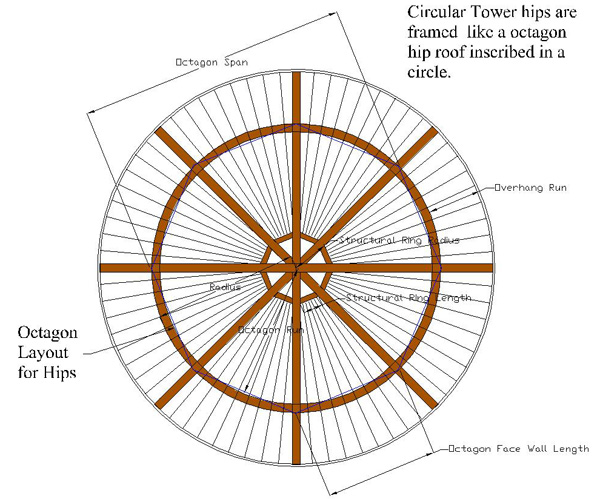

circular Tower Structural Ring Rafter Layout circular-tower-ring.dxf -- auto generated DXF CAD file of rafter drawing each time script is run

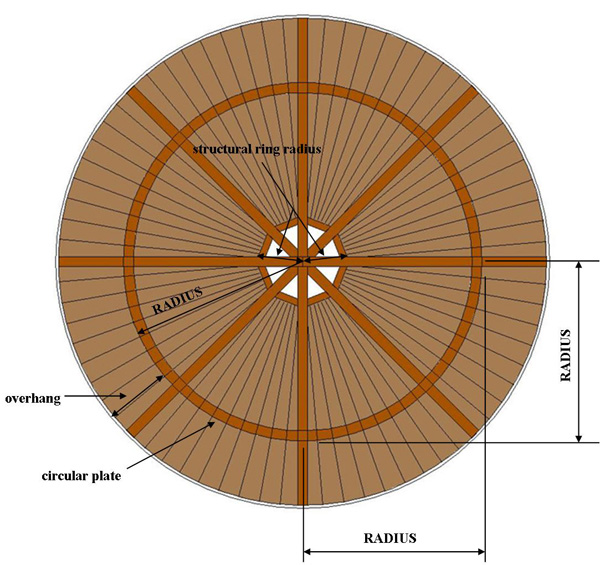

circular Structural Ring Tower Rafter Layout
