Structural Shear Wall Panel Nailing

plywood tear out
Panel tear out.

minimize nail "pop" or "backout by www.APAWOOD.ORG

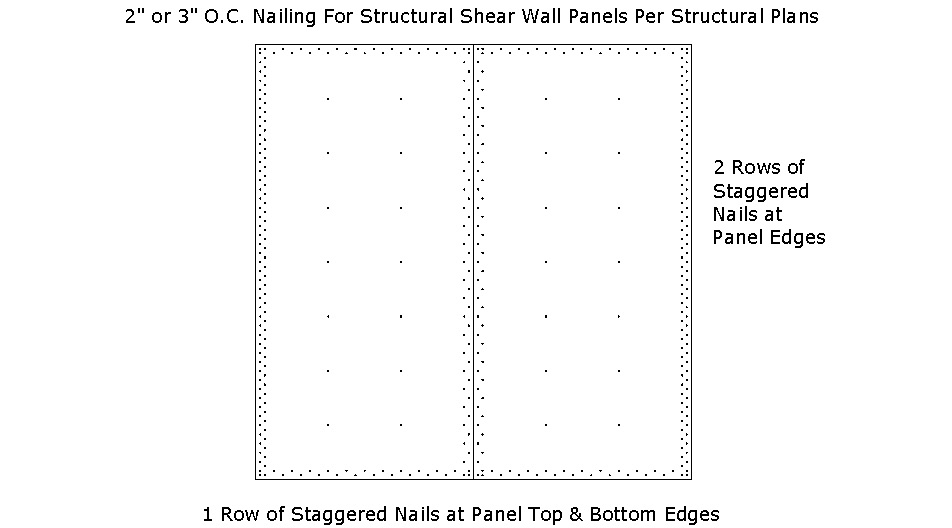

2" or 3" O.C. Nailing For Structural Shear Wall Panels Per Structural Plans.

  • 2 Rows of Staggered Nails at Panel Edges
  • 1 Row of Staggered Nails at Panel Top & Bottom Edges

plywood nailing
plywood nailing

Space panel edges 1/8 inch. Maintain a minimum of 3/8-inch from plywood panel edges to minimize plywood tear out. Stagger all nails at plywood panel edge.

4" or 6" O.C. Nailing For Structural Shear Wall Panels Per Structural Plans.

  • 2 Rows of Staggered Nails at Panel Edges
  • 1 Row of Nails at Panel Top & Bottom Edges

plywood nailing
plywood nailing

Space panel edges 1/8 inch. Maintain a minimum of 3/8-inch from plywood panel edges to minimize plywood tear out. Stagger all nails at plywood panel edge.

AutoCad DWG 2004 files for images on this page
Plywood Nailing Panels for 2" or 3" O.C. Nailing For Structural Shear Wall Panels Per Structural Plans
Plywood Nailing Panel Lines for 2" or 3" O.C. Nailing For Structural Shear Wall Panels Per Structural Plans
Plywood Nailing Panels for 6" or 4" O.C. Nailing For Structural Shear Wall Panels Per Structural Plans
Plywood Nailing Panel Lines for 6" or 4" O.C. Nailing For Structural Shear Wall Panels Per Structural Plans
